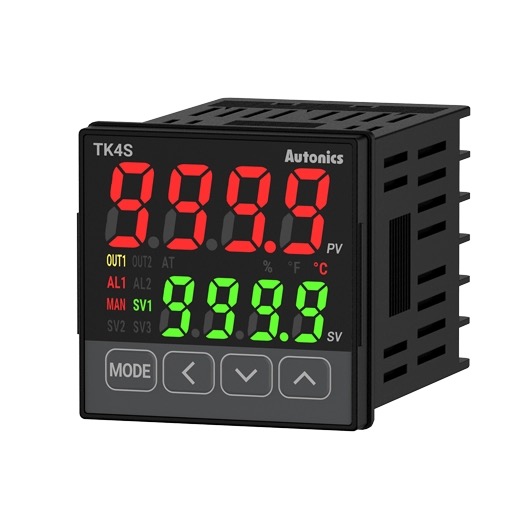

TK4S-24CN
TK4S Series • Industrial Controller
Quick Info
Type
Industrial
Application
Process Control
Probe Inputs
1
Relay Outputs
0
Communication
RS485 Modbus RTU
Panel Size
48x48 mm
Dual display PID with current output
Technical Specifications
Display & Interface
| Display Type | LED |
| Display Digits | 4+4 |
| Buttons | 4 |
| LED Indicators | OUT1, OUT2, AT, ALM |
Power Supply
| Voltage | 100-240V AC |
| Voltage Range | 90-264V AC |
| Frequency | 50/60Hz |
| Power Consumption | 7VA |
Sensor Inputs
| Probe Inputs | 1 |
| Probe Type | TC/RTD/Analog universal |
| Temp Range | -200 to 2300°C |
| Accuracy | ±±0.3% FS |
Relay Outputs
| Relay Outputs | 0 |
| Relay Rating | N/A |
Physical
| Panel Size | 48x48 mm |
| Depth | 75 mm |
| IP Rating | IP65 (front) |
| Weight | 130 g |
Operating Conditions
| Operating Temp | -10 to 50°C |
| Storage Temp | -20 to 60°C |
Wiring Terminals
| Terminal | Function | Type | Wire Color |
|---|---|---|---|
| 1-2 | Power L/N | Input |
brown/blue
|
| 3-5 | TC/RTD Input | Input |
various
|
| 6-7 | 4-20mA Output | Output |
blue/black
|
| 8-9 | RS485 | Comm |
orange/yellow
|
Important: Always disconnect power before wiring. Verify terminal numbers with the actual controller label before connecting.
Parameter Settings
| Code | Parameter | Range | Default | Description |
|---|---|---|---|---|
| SV | Setpoint | Input range | 100 °C | Target temperature |
| P | P Band | 0 to 9999 | 15 °C | Proportional band |
| I | I Time | 0 to 9999 | 150 sec | Integral time |
| D | D Time | 0 to 9999 | 38 sec | Derivative time |
Error Codes
orAL
Over range
Solution: Check sensor
urAL
Under range
Solution: Check sensor
Frequently Asked Questions
Linear analog output for SCR/thyristor power controllers
Alternative Models (Cross Reference)
Omron E5CC
RKC REX-C100
Fuji PXR4
Manufacturer Information
Brand: Autonics
Country: South Korea
