Autonics

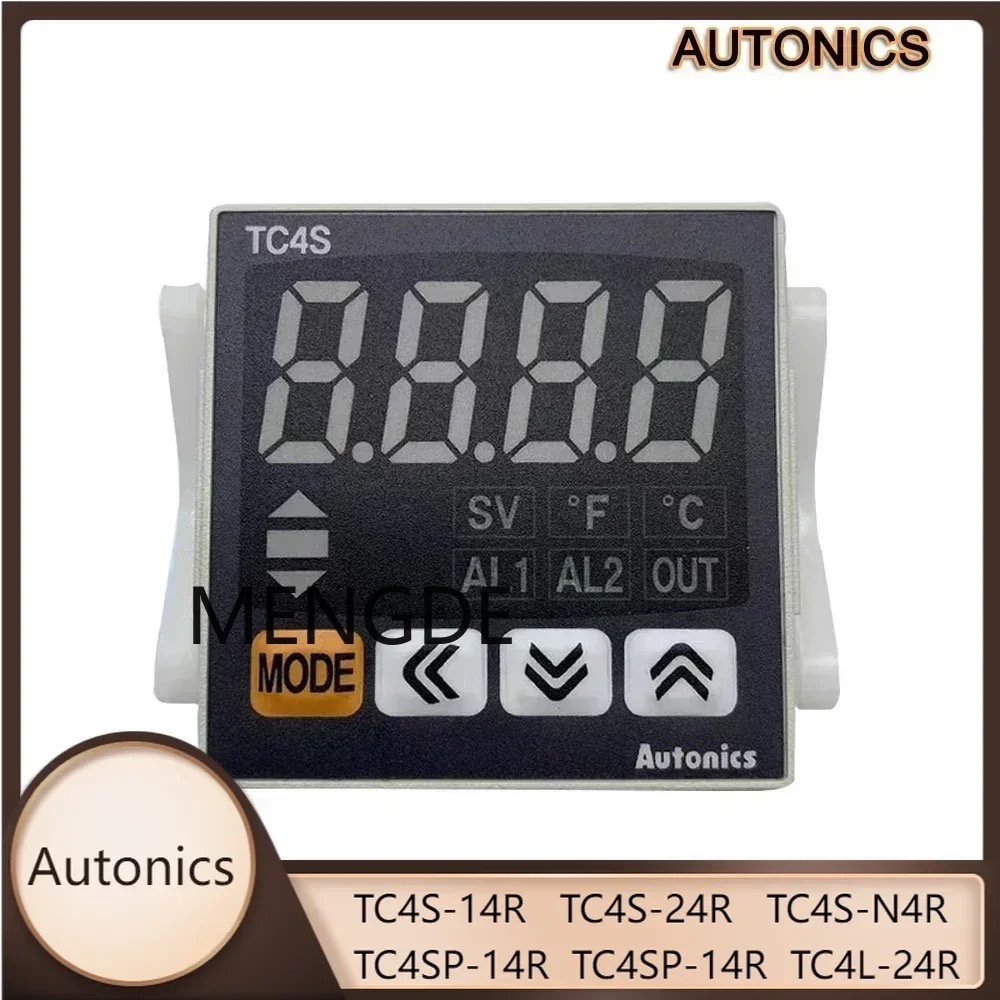

TC4S-24R
TC4S Series • Industrial Controller
Quick Info
Type
Industrial
Application
Process Control
Probe Inputs
1
Relay Outputs
1
Panel Size
48x48 mm
Output Functions
R1
Control
Dual display PID controller with relay output
Technical Specifications
Display & Interface
| Display Type | LED |
| Display Digits | 4+4 |
| Buttons | 4 |
| LED Indicators | OUT1, AT, ALM |
Power Supply
| Voltage | 100-240V AC |
| Voltage Range | 90-264V AC |
| Frequency | 50/60Hz |
| Power Consumption | 5VA |
Sensor Inputs
| Probe Inputs | 1 |
| Probe Type | K/J/E/T/R/S TC, PT100/JPT100 RTD |
| Temp Range | -200 to 1700°C |
| Accuracy | ±±0.3% FS |
Relay Outputs
| Relay Outputs | 1 |
| Relay Rating | 250VAC 3A |
Physical
| Panel Size | 48x48 mm |
| Depth | 85 mm |
| IP Rating | IP65 (front) |
| Weight | 115 g |
Operating Conditions
| Operating Temp | -10 to 50°C |
| Storage Temp | -20 to 60°C |
Wiring Terminals
| Terminal | Function | Type | Wire Color |
|---|---|---|---|
| 1-2 | Power L/N | Input |
brown/blue
|
| 3-5 | TC/RTD Input | Input |
red/white/white
|
| 6-7 | Relay Output | Output |
black
|
Important: Always disconnect power before wiring. Verify terminal numbers with the actual controller label before connecting.
Parameter Settings
| Code | Parameter | Range | Default | Description |
|---|---|---|---|---|
| SV | Setpoint | Input range | 100 °C | Target temperature |
| P | P Band | 0 to 9999 | 25 °C | Proportional band |
| I | I Time | 0 to 9999 | 200 sec | Integral time |
| D | D Time | 0 to 9999 | 50 sec | Derivative time |
Error Codes
orAL
Over range
Solution: Check sensor
urAL
Under range
Solution: Check sensor
Frequently Asked Questions
Dual display shows both PV and SV simultaneously
Alternative Models (Cross Reference)
Omron E5CN
RKC REX-C100
Manufacturer Information
Brand: Autonics
Country: South Korea
