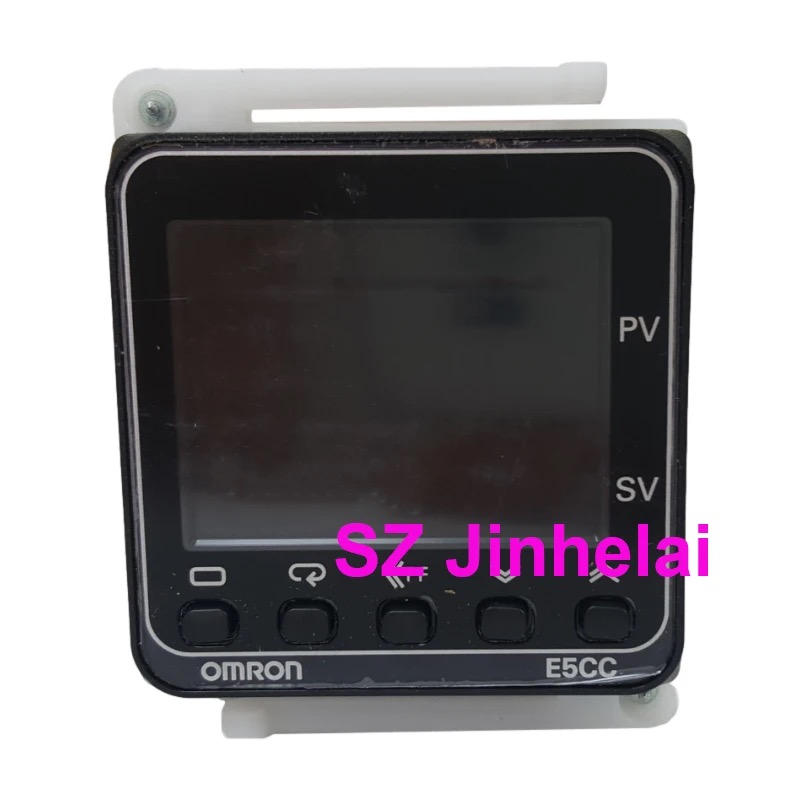

E5CC-QX2ASM-800
E5CC Series • Industrial Controller
Quick Info
Output Functions
Compact PID controller with voltage pulse output
Technical Specifications
Display & Interface
| Display Type | LED |
| Display Digits | 4 |
| Buttons | 5 |
| LED Indicators | OUT1, OUT2, AT, ALM1, ALM2 |
Power Supply
| Voltage | 100-240V AC |
| Voltage Range | 85-264V AC |
| Frequency | 50/60Hz |
| Power Consumption | 10VA |
Sensor Inputs
| Probe Inputs | 1 |
| Probe Type | TC/RTD/mV/mA/V universal |
| Temp Range | -200 to 1800°C |
| Accuracy | ±±0.2% FS |
Relay Outputs
| Relay Outputs | 1 |
| Relay Rating | 250VAC 3A |
Physical
| Panel Size | 48x48 mm |
| Depth | 60 mm |
| IP Rating | IP66 (front) |
| Weight | 100 g |
Operating Conditions
| Operating Temp | -10 to 55°C |
| Storage Temp | -25 to 65°C |
Wiring Terminals
| Terminal | Function | Type | Wire Color |
|---|---|---|---|
| 1-2-3 | Power L/N/GND | Input |
brown/blue/green
|
| 4-5-6 | TC/RTD/Analog Input | Input |
various
|
| 7-8 | Voltage Pulse Output | Output |
orange
|
| 9-10 | Relay Output | Output |
black
|
| 11-12 | RS-485 A+/B- | Comm |
orange/yellow
|
Important: Always disconnect power before wiring. Verify terminal numbers with the actual controller label before connecting.
Parameter Settings
| Code | Parameter | Range | Default | Description |
|---|---|---|---|---|
| SP | Setpoint | Input range | 100 °C | Target temperature |
| P | P Band | 0 to Full Scale | 5.0 °C | Proportional band |
| I | I Time | 0 to 9999 | 200 sec | Integral time |
| D | D Time | 0 to 9999 | 50 sec | Derivative time |
| AT | Auto-tune | Execute/Stop | Stop | PID auto-tuning |
| addr | Address | 1 to 247 | 1 | Modbus address |
Error Codes
Solution: Check input signal
Solution: Check input signal
Solution: Check sensor wiring
Solution: Check RS-485 wiring
Frequently Asked Questions
12V DC pulse for SSR drive, faster response than relay
50ms sampling period for quick response
Alternative Models (Cross Reference)
Manufacturer Information
Brand: Omron
Country: Japan
