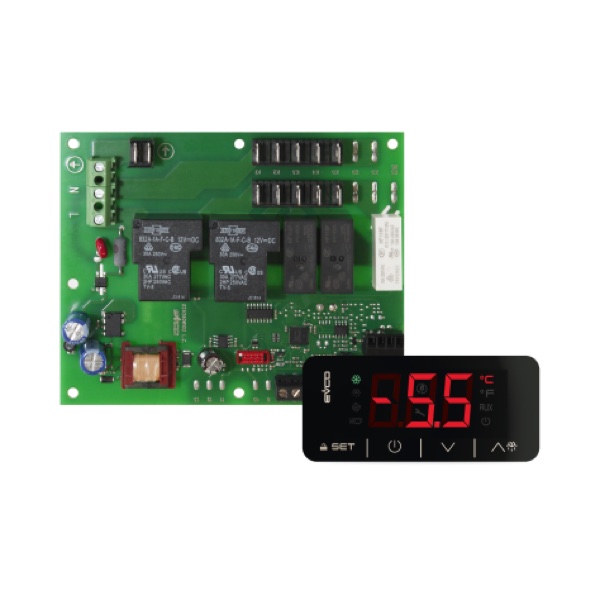

EVC80P01N7
EVC Series • Food Service Controller
Quick Info
Output Functions
Cooking controller for convection ovens with steam injection
Technical Specifications
Display & Interface
| Display Type | LCD |
| Display Digits | Graphic |
| Buttons | 6 |
| LED Indicators | Heat, Fan, Steam, Alarm |
Power Supply
| Voltage | 230V AC |
| Voltage Range | 100-240V AC |
| Frequency | 50/60Hz |
| Power Consumption | 6VA |
Sensor Inputs
| Probe Inputs | 3 |
| Probe Type | PT1000 |
| Temp Range | -50 to 350°C |
| Accuracy | ±0.5°C |
Relay Outputs
| Relay Outputs | 4 |
| Relay Rating | 8A/250VAC |
Physical
| Panel Size | 96x96 mm |
| Depth | 85 mm |
| IP Rating | IP54 (front) |
| Weight | 290 g |
Operating Conditions
| Operating Temp | 0 to 55°C |
| Storage Temp | -20 to 65°C |
Wiring Terminals
| Terminal | Function | Type | Wire Color |
|---|---|---|---|
| 1-2 | Power 230VAC | Input |
brown/blue
|
| 3-4 | Chamber Probe | Input |
yellow/white
|
| 5-6 | Core Probe | Input |
green/white
|
| 7-8 | Steam Probe | Input |
orange/white
|
| 9 | Door Switch | Input |
gray
|
| 10 | Safety | Input |
gray
|
| 11 | Start | Input |
gray
|
| 12 | DI Common | Input |
black
|
| 13-14 | RS485 | Comm |
orange/yellow
|
| 15-16 | Heater | Output |
red
|
| 17-18 | Fan | Output |
blue
|
| 19-20 | Steam Valve | Output |
green
|
| 21-22 | Alarm | Output |
gray
|
Important: Always disconnect power before wiring. Verify terminal numbers with the actual controller label before connecting.
Parameter Settings
| Code | Parameter | Range | Default | Description |
|---|---|---|---|---|
| SP | Temperature | 30 to 300 | 180 °C | Cooking temperature |
| TI | Cook Time | 1 to 999 | 30 min | Cooking duration |
| Ht | Humidity | 0 to 100 | 50 % | Steam injection level |
| FS | Fan Speed | 0=Low,1=Med,2=High | 2 | Fan speed setting |
| PH | Preheat Temp | 50 to 300 | 180 °C | Preheat temperature |
| Ct | Core Temp | 30 to 99 | 72 °C | Core temperature target |
Error Codes
Solution: Check chamber probe
Solution: Check core probe
Solution: Check steam probe
Solution: Close oven door
Solution: Check safety thermostat
Frequently Asked Questions
Measures internal temperature of food for accurate doneness
Controls humidity in cooking chamber for better browning and crust
Alternative Models (Cross Reference)
Manufacturer Information
Brand: Evco
Country: Italy
