Eliwell

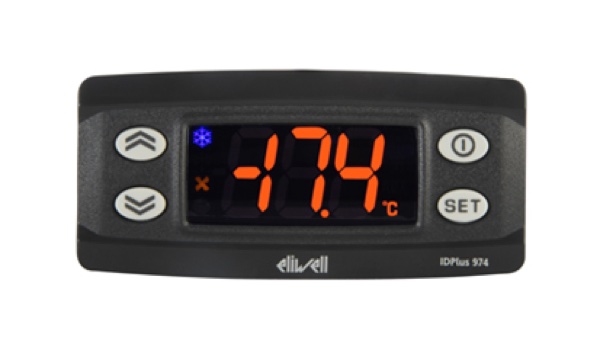

ID 961
ID Series • Refrigeration Controller
Quick Info
Type
Refrigeration
Application
Display Case
Probe Inputs
1
Relay Outputs
2
Panel Size
32x74 mm
Output Functions
R1
Compressor
R2
Defrost
Standard dual relay controller with timed defrost
Technical Specifications
Display & Interface
| Display Type | LED |
| Display Digits | 3 |
| Buttons | 4 |
| LED Indicators | Compressor, Defrost |
Power Supply
| Voltage | 230V AC |
| Voltage Range | 100-240V AC |
| Frequency | 50/60Hz |
| Power Consumption | 3VA |
Sensor Inputs
| Probe Inputs | 1 |
| Probe Type | NTC 10K |
| Temp Range | -50 to 110°C |
| Accuracy | ±0.5°C |
Relay Outputs
| Relay Outputs | 2 |
| Relay Rating | 8A/250VAC |
Physical
| Panel Size | 32x74 mm |
| Depth | 60 mm |
| IP Rating | IP65 (front) |
| Weight | 75 g |
Operating Conditions
| Operating Temp | -5 to 55°C |
| Storage Temp | -25 to 70°C |
Wiring Terminals
| Terminal | Function | Type | Wire Color |
|---|---|---|---|
| 1 | Power L | Input |
brown
|
| 2 | Power N | Input |
blue
|
| 3 | Probe (+) | Input |
red
|
| 4 | Probe (-) | Input |
white
|
| 5-6-7 | Compressor | Output |
black
|
| 8-9-10 | Defrost | Output |
black
|
Important: Always disconnect power before wiring. Verify terminal numbers with the actual controller label before connecting.
Parameter Settings
| Code | Parameter | Range | Default | Description |
|---|---|---|---|---|
| SET | Setpoint | -50 to 110 | -5 °C | Temperature setpoint |
| Hy | Differential | 0.1 to 25.5 | 2 °C | Switching differential |
| dty | Defrost Type | 0-2 | 1 | 0=Off, 1=Electric, 2=Comp stop |
| dit | Defrost Interval | 0 to 24 | 8 h | Hours between defrosts |
| dLt | Defrost Time | 1 to 99 | 30 min | Max defrost duration |
| Cd | Comp Delay | 0 to 15 | 3 min | Restart delay |
Error Codes
E1
Probe fault
Solution: Check probe wiring
HI
High temp
Solution: Check system
LO
Low temp
Solution: Check setpoint
Frequently Asked Questions
ID Plus 961 has RS485, dual probe option
Press DEF for 5 seconds
Alternative Models (Cross Reference)
ID Plus 961
EW Plus 961
Dixell XR20CX
Manufacturer Information
Brand: Eliwell
Country: Italy
Parent: Schneider Electric
