Elitech

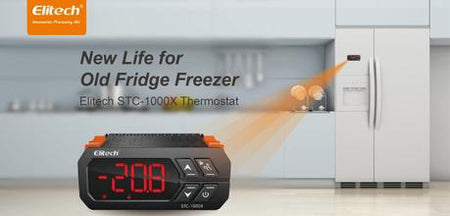

STC-1000X
STC Series • Temperature Controller
Quick Info
Type
Temperature
Application
General Purpose
Probe Inputs
1
Relay Outputs
2
Panel Size
75x35 mm
Output Functions
R1
Cooling
R2
Heating
Enhanced version with wider temperature range and improved accuracy
Technical Specifications
Display & Interface
| Display Type | LED |
| Display Digits | 4 |
| Buttons | 4 |
| LED Indicators | Cool, Heat, Alarm |
Power Supply
| Voltage | 110-240V AC |
| Voltage Range | 85-265V AC |
| Frequency | 50/60Hz |
| Power Consumption | 3W |
Sensor Inputs
| Probe Inputs | 1 |
| Probe Type | NTC 10K |
| Temp Range | -50 to 120°C |
| Accuracy | ±0.5°C |
Relay Outputs
| Relay Outputs | 2 |
| Relay Rating | 10A/250VAC |
Physical
| Panel Size | 75x35 mm |
| Depth | 85 mm |
| IP Rating | IP20 |
| Weight | 105 g |
Operating Conditions
| Operating Temp | -10 to 60°C |
| Storage Temp | -20 to 70°C |
Wiring Terminals
| Terminal | Function | Type | Wire Color |
|---|---|---|---|
| 1 | Power L | Input |
brown
|
| 2 | Power N | Input |
blue
|
| 3-4 | NTC Probe | Input |
yellow/white
|
| 5-6 | Cooling Relay | Output |
black
|
| 7-8 | Heating Relay | Output |
red
|
Important: Always disconnect power before wiring. Verify terminal numbers with the actual controller label before connecting.
Parameter Settings
| Code | Parameter | Range | Default | Description |
|---|---|---|---|---|
| SP | Setpoint | -50 to 120 | 5 °C | Temperature setpoint |
| dF | Differential | 0.1 to 15 | 1 °C | Switching hysteresis |
| Cd | Comp Delay | 0 to 15 | 3 min | Restart delay |
| CA | Calibration | -10 to 10 | 0 °C | Probe offset |
| HA | High Alarm | -50 to 120 | 50 °C | High temp alarm |
| LA | Low Alarm | -50 to 120 | -40 °C | Low temp alarm |
Error Codes
E1
Probe fault
Solution: Check probe wiring
HH
High alarm
Solution: Check cooling system
LL
Low alarm
Solution: Check heating system
Frequently Asked Questions
Wider voltage input (universal), better accuracy, added alarm function
Alternative Models (Cross Reference)
Inkbird ITC-308S
Willhi WH1436H
Dixell XR02CX
Manufacturer Information
Brand: Elitech
Country: China
