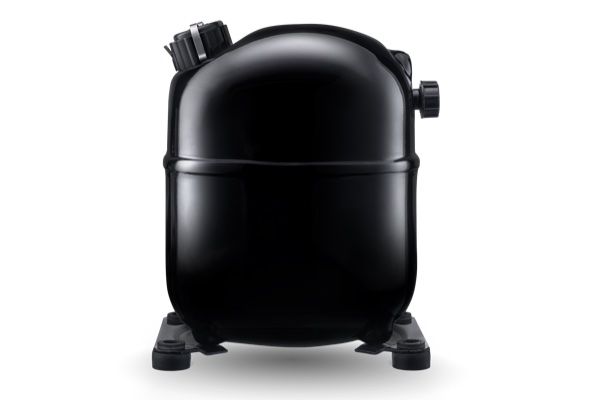

Embraco
NJ2190E
Reciprocating Compressor • R22
Quick Stats
Capacity
7,500 BTU/h
Power
2,198 W (~2.95 HP)
Refrigerant
R22
Type
Reciprocating
Application
LBP
Technical Specifications
Performance
| Cooling Capacity | 7,500 BTU/h |
| Cooling Capacity (W) | 2,198 W |
| Displacement | 19 cc |
| Application | LBP |
Electrical
| Voltage | 220-240V/50Hz |
| Phase | 1-Phase |
| RLA (Running Load Amps) | 6.2 A |
| LRA (Locked Rotor Amps) | 40 A |
Physical
| Weight | 15 kg |
| Oil Charge | 420 cc |
| Oil Type | Mineral |
Refrigerant
| Primary Refrigerant | R22 |
| Compressor Type | Reciprocating |
Oil Compatibility & Lubrication
Oil Specifications
| Required Oil Type | MO |
| Full Name | Mineral Oil (MO) |
| Viscosity Grades | ISO VG 32, 46, 68 |
| Recommended | ISO VG 46-68 |
| Factory Charge | 420 cc |
Compatible Oil Brands
- Suniso 3GS
- Copeland 3MA
- Virginia KMP 68
Important Warnings for R22
- • R-22 is being phased out - consider system upgrade
- • AB (Alkylbenzene) oil also compatible
- • Never mix with POE oil
Oil Return: Good miscibility with mineral oil at normal operating temps
General Oil Guidelines
!
Never mix MO (Mineral) and POE oils - causes chemical breakdown
💧
POE absorbs moisture - keep container sealed, minimize air exposure
✓
Check oil level through sight glass after 24 hours of operation
Installation Guidelines
1
Ensure the system is properly evacuated before charging with R22 refrigerant.
2
Use Mineral oil only. Oil charge: 420 cc.
3
Breaker size recommendation: 8 A minimum (based on RLA × 1.25).
4
Wire size should be rated for 6.2 A continuous load at 220-240V/50Hz.
Recommended Accessories
Start Capacitor
For high starting torque applications
Run Capacitor
Improves efficiency and power factor
Overload Protector
Thermal protection for motor
Start Relay
PTC or current relay for motor starting
Manufacturer Information
Brand: Embraco
Country: Brazil
